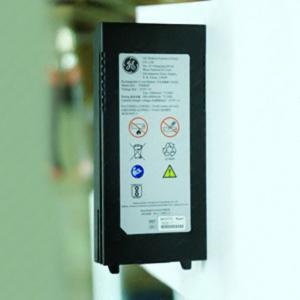

LOGIQ e Battery Pack (BT12)

Informazioni sul prodotto

The LOGIQ e Battery Pack (BT12) is used for the continued operation of any system during power interruptions, which can be achieved by the presence of these batteries. The lithium ion battery provides power when an AC power source is interrupted. Lithium ion batteries last longer than conventional batteries and do not require replacement as often. The lithium ion technology used is significantly less hazardous to the environment than the lithium metal technology used in other similar batteries (such as watch batteries). This particular battery comes with a protection circuit for detecting function of overcharge, over discharge and current over discharge occurrences. The battery pack is capable of continuous charging at 16.8 Volt and a 3000mA maximum current. Charging will be terminated during to minimum current 200mA.The battery pack is capable of continuing discharge at standard discharge current across the entire discharge operating temperature range. Overcharge prevention: 4.30 ± 0.05V/cell (17.4 ± 0.4V/pack) or more (at 25 ℃) with reset when discharged to 4.10 ± 0.1V (16.4 ± 0.4V/pack). Over discharge prevention: 2.30 ± 0.10V/cell (9.2 ± 1.0V/pack) or less (at 25 ℃) with reset when recharged to 2.90 ± 0.15V) 11.60 ± 0.60V/pack) or more. Over current protection: when the battery load current exceeds 8A-12A at 25 ℃ and the over current protector shall trip within 10 sec. When the external load is removed, the charge battery packs the over current protector will reset and the battery pack will operate to requirements specified.
