BT11 DTRX64 II Assembly
| 5399198 | |
| 5252321 5252321-2 | |
| Nuovo | |
| Ecografia | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto

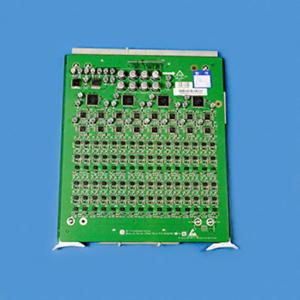

This DTRX64 II Assembly is a beam-forming part that's main function is Analog and Digital Signal Processing. It has 64 channels of analog and digital signal conditioning circuits that transmit a high voltage pulse, and receive and amplify the echo-backed small signals from a transducer through an Interface board. Each channel consists of a low-noise and active input termination pre-amplifier (LNA), voltage controlled amplifier (VGA), Low pass filter (AAF) and an analog to digital converter (ADC) in a receiver path, and a dual-TX-driver and TR switch in a transmiter path. A Transmit/Receiver Switch (T/R Switch) is a diode configuration that allows the pulser to drive the transducer, and protects the receiver preamp from large negative and positive voltages produced by the transmitter. The assembly includes MLB64 II and DTD64 circuit boards which are interconnected. This assembly can be used with Logiq P6 Ultrasound systems.
Prodotti compatibili
LOGIQ P6
LOGIQ E9
The LOGIQ* E9 is a versatile general imaging system that helps meet a wide variety of general imaging needs. As healthcare evolves and ultrasound exams become more in demand, you need the ability to adapt to the changing environment with an ultrasound system that gives you flexibility, ease of use, speed and reliability.
The LOGIQ E9 can help you:
Deliver extraordinary image quality on a broad spectrum of patient body types.
Visualize blood flow without the limitations of Doppler
Enhance your workflow.
Integrate real-time ultrasound with previously acquired CT, MR, PET, or ultrasound images.
Visually track your position during a scan.
Item equivalente:
Di seguito sono riportate ulteriori informazioni sugli articoli equivalenti. Gli articoli senza collegamento ipertestuale vengono visualizzati solo a scopo di riferimento e non sono disponibili per l'acquisto online.
| Item equivalente | Dettagli dell'articolo |
|---|---|
| 5252321 | LOGIQ P6 Dtrx 64 Channel Assembly |
| 5252321-2 | DTRX64 II Assy |
