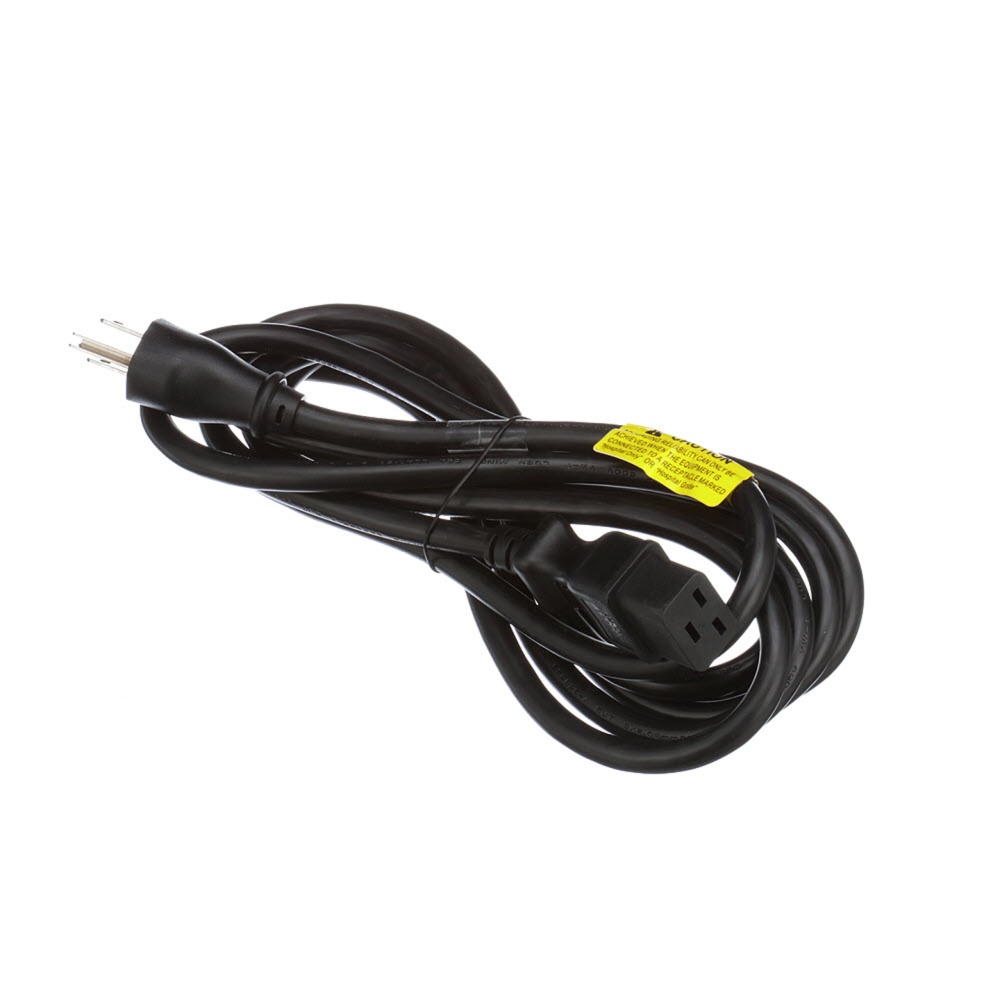

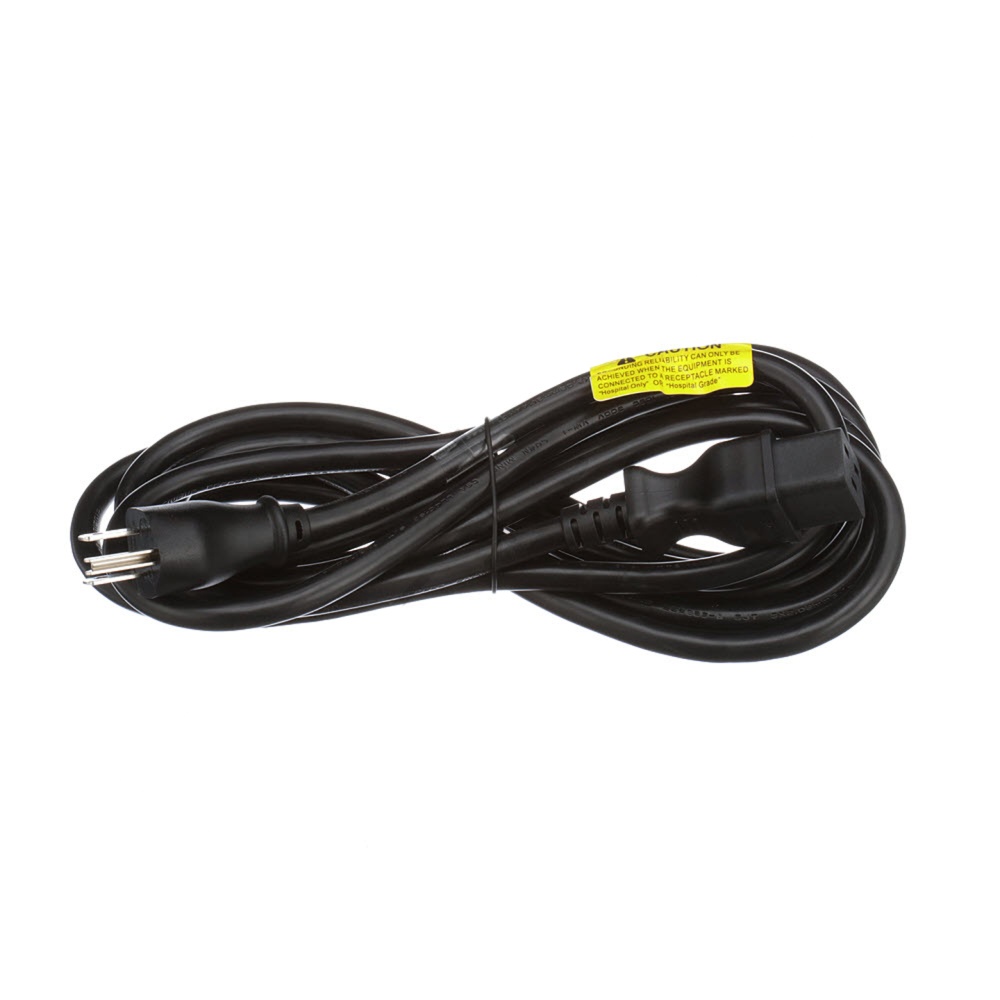

North America Power Cord
| 5148381 | |
| 2162856 | |
| Nuovo | |
| Ecografia | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto
The North America Power Cord is used to supply power to medical components. It uses 3 conductor cables with black, white, green colors (or brown, light blue, green/yellow). The cable has a maximum temperature rating of 105˚C and is type SJT 3 x 2.08 mm which is a 14 AWG gauge cable. It has a voltage rating of 300V and flame rating of VW-1. The cord insulation is well tested with a high potential test of minimum 2000VAC between wire to wire and between the wires to the skin. The cord ground continuity is tested with 25AC current source for 2 seconds, showing maximum resistance of 0.1 ohms. The cord’s L and N continuity are tested with an AC current source which is minimum 75% of the rating of the cord for 2 seconds, showing max resistance of 0.1 ohms for each wire. Over mold dimensions are shown for proper fastening of connector to product. The cord has id labels and caution labels. It is packed in a plastic bag, heat sealed, labeled and placed into carton.
Prodotti compatibili
LOGIQ E9
The LOGIQ* E9 is a versatile general imaging system that helps meet a wide variety of general imaging needs. As healthcare evolves and ultrasound exams become more in demand, you need the ability to adapt to the changing environment with an ultrasound system that gives you flexibility, ease of use, speed and reliability.
The LOGIQ E9 can help you:
Deliver extraordinary image quality on a broad spectrum of patient body types.
Visualize blood flow without the limitations of Doppler
Enhance your workflow.
Integrate real-time ultrasound with previously acquired CT, MR, PET, or ultrasound images.
Visually track your position during a scan.
VIVID E90
LOGIQ e
Vivid E95
The VividTM E95 is a premium 4D cardiovascular ultrasound system designed to help you reach new heights of care efficiency and effectiveness.
Better image quality. Faster volume rates with higher processing power. Smaller probes.† With the Imaging. Elevated. release, cSound 2.0 facilitates a new level of image quality and 4D volume rates by expansion of the processing power and the development of new beamforming algorithms. As you navigate the increasing challenges of cardiovascular care, the Vivid™ E95 cardiovascular ultrasound system brings you the uncompromised imaging you need more than ever. From the beamformer to the image processor (GPU) to the probes, we’ve advanced key elements of the system to deliver a solution that’s Better. Faster. Smaller.
One patient, one probe The new one-probe adult 4D TTE solution on the Vivid™ E95 provides an excellent ergonomic workflow solution with uncompromised 2D, 4D, color and Doppler image quality performance at ultra-high volume rates - all with a single probe. This allows for complete and comprehensive diagnosis with one probe and avoids switching of probes, thereby reducing exam time and helping you move swiftly through your work with minimal muscular stress and strain on the operator.
Item equivalente:
Di seguito sono riportate ulteriori informazioni sugli articoli equivalenti. Gli articoli senza collegamento ipertestuale vengono visualizzati solo a scopo di riferimento e non sono disponibili per l'acquisto online.
| Item equivalente | Dettagli dell'articolo |
|---|---|
| 2162856 | 2162856 |
