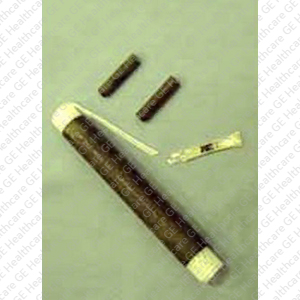

Cold Shrink Connector Insulator
| 2218148 | |
| Nuovo | |
| Imaging risonanza magnetica (MRI) | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto
The Cold Shrink Connector Insulator are open-ended, tubular, rubber sleeves which are factory expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over an inline connection, terminal lug, etc., allowing the tube to shrink and form a water-resistant seal. The insulating tube is made of EPDM rubber which does not contain chlorides or sulfur. Six diameter sizes will cover a range of cable up to 1000 volts for copper and aluminum conductors from 10 AWG through 1000 kcmil. The application of the connector is to provide primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splicing rated up to 1000 volts, physical protection and moisture sealing for air-insulated connectors and lugs such as spacer cable and lug connections to bus bar, insulation of secondary splices/copper or aluminum conductors, sheath repairs, environmental sealing for communication and other non-electrical applications and so on. It is securely packaged inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.
